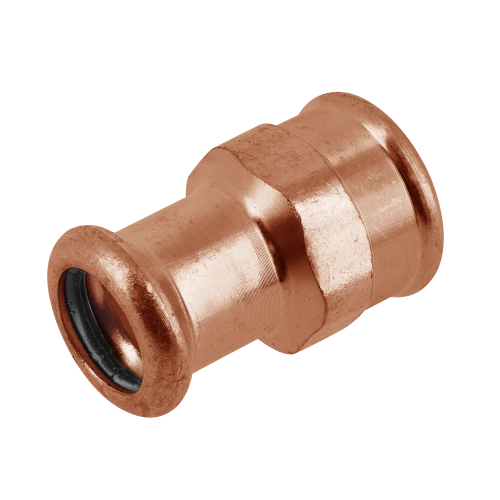

BONFIX press fitting red copper female adapter 35mm x 1inch FRp
Bekijk alles uit de categorie Toilets
- Directly available from stock
- Pay as you wish
- 14 days reflection period
- Expert advice.
customers give us a 9.1 at WebwinkelKeur
Description
This press fitting is suitable for multiple applications, such as: cooling water, (oil-free) compressed air, heating and industry.
- Connection: female adapter FRp (female x internal thread)
- Diameter: 35mm x 1inch
- Max. working pressure: 16bar
- Equipped with KIWA approval
BONFIX has a wide range of press fittings available from stock. This range consists of red copper material and is available in sizes from 12mm to 108mm. The red copper press fittings are high quality fittings for press connections in copper piping systems. The red copper press fittings for water applications carry the DVGW and KIWA quality mark.
BONFIX Leak Before Pressed (LBP) feature
BONFIX red copper press fittings are supplied with “Leak Before Pressed” function using BONFIX pipes. Fittings with this feature have the advantage that as long as the connections are NOT pressed, they will leak water during the mandatory pressure test. This means that a fitting that is incompletely pressed can be easily found. If the fittings are correctly assembled and pressed, then the press fittings are air and watertight!
The advantages of the BONFIX press fitting:
- Large and wide range
- Red copper, stainless steel and galvanized steel from 12 to 108mm
- Quick and easy installation
- Safety assured with KIWA-HA and GASTEC quality marks
- No fire risk during installation
- Easy and fast pressing
- Superior quality
- Safe and reliable connections with a long service life
- High corrosion resistance
- Excellent value for money
- Sealing rings with leak detection: LBP (Leak Before Pressed)
- Each fitting 100% leak test
- Low flow resistance and noise level
- Beautiful design by even structure
Specifications
| Article number | 400818 |
| EAN nummer | 8717845051488 |
| Diameter | 1inch 35mm |
| Brand | BONFIX |
| Contour | M-profiel |
| Model | female adapter |
| Connection | FRp (female x internal thread) |
| Application | Heating tap water cooling oil-free compressed air sprinkler systems |
| Material | copper |
| Certification | kiwa ata |
| Collecties 2 | copper pressfittings |
