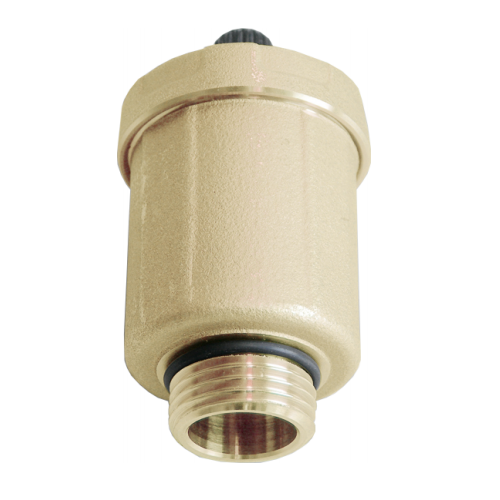

Tiemme automatic air vent 3/8inch
- Directly available from stock
- Pay as you wish
- 14 days reflection period
- Expert advice.
customers give us a 9.1 at WebwinkelKeur
Description
This air vent is suitable for heating systems.
- Connection: 3/8inch external thread
- Max. working pressure water: 10bar
- Max. working temperature +110°C
- Max. discharge pressure: 4bar
Automatic air vents are used in heating and cooling systems. The air vent removes air that is trapped in the circuits during filling.
Advantages:
- Automatic air venting
- Maximum discharge pressure 4bar
- Guarantees better system performance resulting in reduced heating costs
- Prevents problems with noise in the system and wear of components
- Compact size
- Equipped with a sealing cap on the air vent
Operating principle: The float drops due to the presence of air in the air vent, causing the valve to open to remove the air from the vent. As soon as the air leaves the system, the water goes into the relief valve, resulting in the float dropping and the opening of the gas discharge device. Otherwise, if there is no air in the circuit, the water in the relief valve will hold the float in such a position that the gas discharge device remains closed.
Specifications
| Article number | 1900.38.1980014 |
| EAN nummer | 8027830048271 |
| Diameter | 3/8inch |
| Brand | Tiemme |
| Model | air vent |
| Connection | MR (male x external thread) |
| Application | Heating biomass boiler gas boiler wood gasifier pellet boiler solid fuel boiler cooling underfloor heating |
| Material | brass |
| Collecties 2 | air vents |
